SpeedFace-V3LM1

Previous product
IN05-A
Next product
Tablet Price Tag

In Stock
Highlights:

· An IP65 protection rating with waterproof and dustproof, can fully operate under extreme weather
· Multiple authentication methods: facial recognition, fingerprint, scramble QR code and RFID cards verification
· Available card modules:125kHz ID card / 13.56MHz IC card
· Hidden supplement light design with adjustable brightness
· On board web server for system configuration
· High capacity for necessary record storage. Offers 200,000 transaction logs (Facial templates: 500 / Fingerprint
capacity: 3,000 / RFID card capacity: 3,000)

Downloads

Compare
Category:
Description

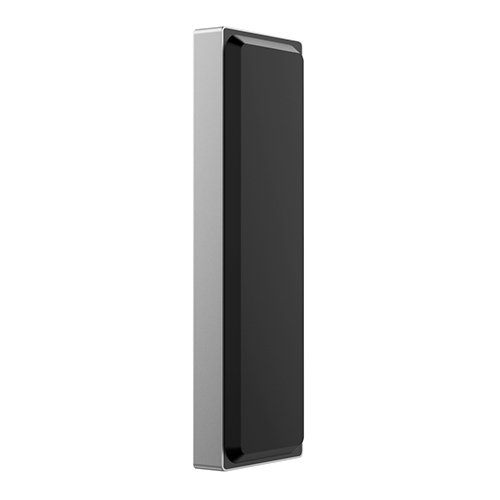

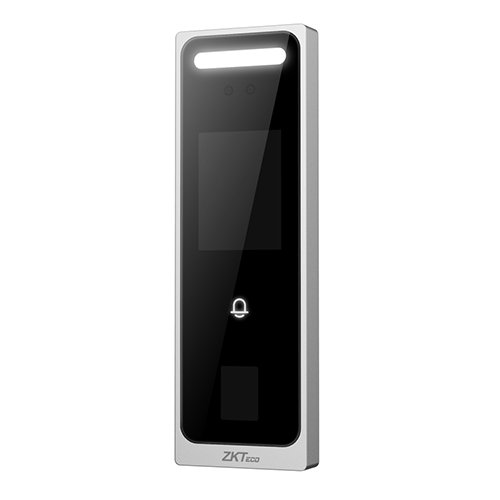

SpeedFace-V3LM1 is an efficient Linux-based access control terminal, utilizing visible light technology for a comprehensive security management.

This terminal provides dual authentication methods, including facial recognition and fingerprint verification.  Also, SpeedFace-V3LM1 is equipped with an ultimate anti-spoofing algorithm for facial recognition against all types of fake photos and videos attack.

Additionally, there are different versions of SpeedFace-V3LM1 to satisfy your needs. SpeedFace-V3LM1 [QR] comes with a QR code module, while the SpeedFace-V3LM1 [RFID] supports RFID cards verification function. The USB facial recognition extension reader KF1000-U is compatible with SpeedFace-V3LM1, offering a two-way verification and facial recognition access control management.

SpeedFace-V3LM1 series is also compatible with ZKBio CVAccess and ZKBio Zlink Mobile APP & ZKBio Zlink-Web when switching to BEST protocol.

Reviews (0)
0 ★
0 Ratings
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0

There are no reviews yet.

Be the first to review “SpeedFace-V3LM1”

Your email address will not be published. Required fields are marked *

Related Products

F7

Highlights:
  • Fingerprint Capacity: 2, 200
  • Transaction Capacity: 50, 000
  • Communication: RS232/485, TCP/IP
  • Sensor: ZK Optical
  • Dimension: 90 x 190 x 39 mm
  • Power Supply: 12V DC 3A
  • Access Control Interface: 3rd party electric lock, door sensor, exit button, Door alarm.
  • Access Control Functions: Anti-pass back (with F12 slave)

Downloads

Read more
Compare
Quick View

SpeedFace M4

Read more
Compare
Quick View

SenseFace 7 Series

Highlights:

Features

  • Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
  • Attained IP65 Protection Rating With Dustproof and Waterproof
  • Multiple Authentication Methods: Face / Fingerprint / RFID / Password
  • Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
  • HD Video Door Phone Via SIP Protocol (Version 2.0). It is Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)
  • User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
  • Compatible with wireless doorbell (optional)
  • Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
    Sensor; Exit Button)

Downloads

Read more
Compare
Quick View

ProCapture-X

Highlights:

Capacity
Fingerprint: 20,000
Cards: 50,000
Transaction: 500,000

Compatibility
Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software

Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Card(Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
POE(Standard IEEE 802.3at)
Wireless doorbell(Optional)

Access Control Interface:
Lock Relay Output
Alarm Output/Auxiliary Input
Exit Button / Door Sensor
Security Relay Box

Special Functions:
Multiple Verification Modes
Alive Finger Detection
ZK Encrypted Card(Optional)
Fingerprint Card(Optional)

Standard Functions:
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver

Communication
TCP/IP
RS485 (For fingerprint&card Reader)
USB Host
Wiegand Input / Output
Wi-Fi(Optional)

Additional Info
Working Temperature: 0°C ~ 45 °C
Dimensions: 200.5 × 88.5 × 28.7 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR≤0.0001% FRR≤0.01%
Package Includes 12V 3A Power Supply

Power
Operating Voltage 12V DC 3A
Current Draw < 500mA

Downloads

Read more
Compare
Quick View

ProCapture-T

Highlights:

Downloads

Capacity
Fingerprint: 6,000
Card: 10,000
Transaction: 100,000
User Photo: 3,000
Event Photo: 7,000

Communication
TCP/IP
RS485 (For Slave Reader)
USB Host
Wiegand Input / Output
Security Relay Box

Access Control Interface
Lock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Doorbell Output

Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Reader (Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
120° Wide Angle Camera

Standard Functions
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver

Special Functions
Multiple Verification Modes
Alive Finger Detection
Event Snapshot
User Photo (Optional)
ZK Encrypted Card (Optional)
Fingerprint Card

Compatibility
Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software

Additional Info
Working Temperature: -10 °C ~ 50 °C
Dimensions: 195.5 × 87 × 35 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR≤0.0001% FRR≤0.01%
Package Includes 12V 3A Power Supply

Power
Operating Voltage 12V DC
Current Draw < 500mA

Read more
Compare
Quick View

F18 Access Control Terminal

Highlights:
  • Display: 2.4-inch TFT LCD Color Screen
  • Fingerprint Capacity (optional): 3,000
  • Card Capacity: 5000(Optional) ID/IC/HID Prox/HID iclass card
  • Transaction Capacity: 100,000
  • Sensor: ZK Optical Sensor
  • Algorithm Version: ZK Finger 10.0
  • Communication: RS232/485, TCP/IP, USB-host
  • Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
  • Wiegand Signal: Input, Output, SRB
  • Functions: DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
  • Power Supply: 12V DC, 3A
  • Operating Temperature: 0 °C – 45 °C
  • Operating Humidity: 20% – 80%
  • SDK and Software: AC push, ZKBioAccess IVS / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
  • Dimension: 80 × 183 × 42mm (W*D*H)

Downloads

F18 Brochure

Icon

F18

1 file(s) 0.00 KB
Download

Read more
Compare
Quick View

SenseFace 3 Series

Highlights:

• Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
• Attained IP65 Protection Rating With Dustproof and Waterproof
• Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
• Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive.
• Compatible with wireless doorbell (optional)
• Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
Sensor; Exit Button)

Downloads

Read more
Compare
Quick View

SpeedFace-V3L (Lite)

Highlights:

· IP65 waterproof and dustproof
· Multiple authentications: Facial recognition / RFID card / Password
· Available card modules:125KHz ID card / 13.56MHz IC card
· Hidden supplement light with adjustable brightness
· HD video door phone via ZSmart mobile App & ZKBio Talk (PC) (Coming soon)
· Embedded web server for system configuration
· With high capacity for necessary storage (log events: 200,000 / RFID
card: 3,000 / face capacity: 500)

Read more
Compare
Quick View

KF1100 & KF1200 | Access Control Face Reader

Highlights:
  • Biometric Method: Visible light facial
  • RFID: ID card standard & IC card (Optional)
  • User Capacity: 30,000
  • Card Capacity: 30,000
  • Face Capacity: 1,500
  • Logs Capacity: 100,000
  • Facial Recognition Algorithm: ZKLiveface 3.5
  • Facial Recognition Speed: < 0.3s
  • Facial Recognition Distance: 30cm ~ 50cm
  • Facial Recognition Rate: FAR ≤ 0.001%; FRR ≤ 1%
  • MountingKF1100: Wall Mount ( Compatible with Asian gang – box )
    KF1200: Wall Mount ( Compatible with Single gang – box )
  • Operation System: Linux
  • Optional Functions: Wi-Fi (Coming soon)
  • Power Supply: ≤ 12V 500mA
  • Storage Temperature:-20°C to 60°C ( -4°F to 140°F )
  • Operating Humidity: 10% to 90%RH
  • DimensionW*H*D
    KF1100: 91*91*13.8 mm
    KF1200: 121*80*13.8 mm
  • Supported Softwares:ZKBio Access IVS
Read more
Compare
Quick View

SenseFace 2A

Highlights:

• Visible Light Facial Authentication Technology and ZK Optical Fingerprint Verification
• Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
• Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive.
• Compatible with wireless doorbell (optional)
• Simple access control functions (Electric Lock; Door Sensor; Exit Button)

Downloads

Read more
Compare
Quick View

SenseFace 4 Series

Highlights:

• Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
• Attained IP65 Protection Rating With Dustproof and Waterproof
• Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
• Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
• Compatible with wireless doorbell (optional)

Downloads


• Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
Sensor; Exit Button)

Read more
Compare
Quick View

F22

Highlights:
  • Display: 2.4-inch TFT LCD Color Screen
  • Fingerprint Capacity (optional): 3,000
  • Card Capacity: 5000(Optional) ID or IC Card
  • Transaction Capacity: 30,000
  • Sensor: Z-ID Sensor (optional)
  • Algorithm Version: ZKFinger V10.0
  • Communication: RS232/485, TCP/IP, USB-host, Wi-Fi
  • Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
  • Wiegand Signal: Input, Output
  • Aux. Input: 1ea for linkage function
  • Functions: DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional)
  • Power Supply: 12V DC, 3A
  • Operating Temperature: 0 °C – 45 °C
  • Operating Humidity: 20% – 80%
  • Dimension: 158.5 x 78.0 x 19.4mm (LxWxH)
  • SDK and Software: PUSH AC SDK, ZKBio Access software
