SenseFace 4 Series

Previous product
IN05-A
Next product
Tablet Price Tag

In Stock
Highlights:

• Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
• Attained IP65 Protection Rating With Dustproof and Waterproof
• Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
• Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
• Compatible with wireless doorbell (optional)

Downloads


• Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
Sensor; Exit Button)

Compare
Category: Tags: , , ,
Description

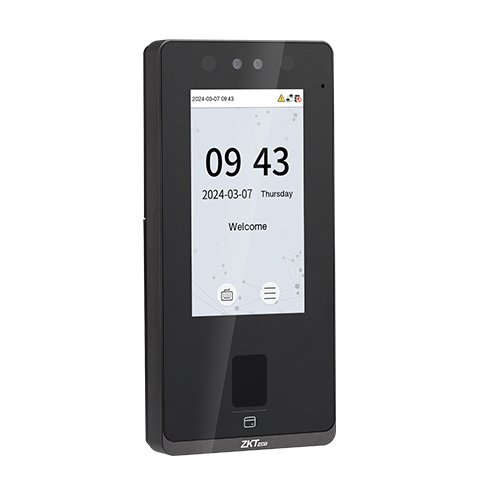

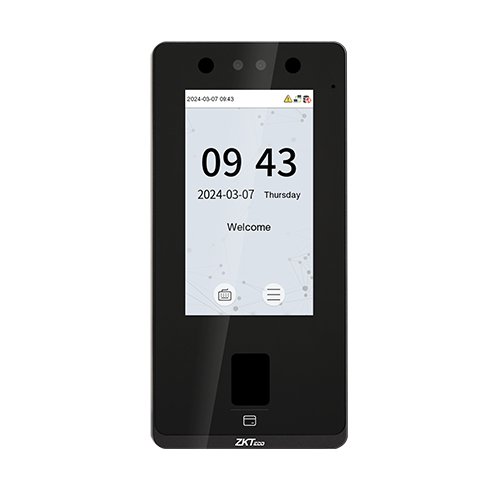

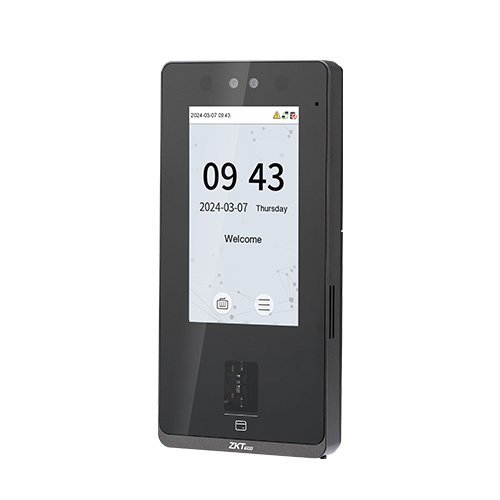

SIP-Ready Multi-Biometric Access Control Terminal with Video Intercom Capability.

SenseFace 4 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate anti-spoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication.

SenseFace 4 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 4 Series supports multiple communication protocols. Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
