- ModelPE08-120
- Ethernet Port8 PoE Ports (10 / 100 Mbps)
2 Uplink Ports (10 / 100 Mbps)
All ports support MDI / MDIX self-adaptation - POE StandardIEEE 802.3af, IEEE802.3at
- PoE ConsumptionMax 30W per Port, total PoE budget 120W
- Network ProtocolIEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control - Switching Bandwidth2Gbps
- Packet Fowarding Rate1.488Mpps
- Buffer Memory768KB
- Mac Table Size2KB
- MTBF100,000 hours
- Power InputAC220V, 50 / 60Hz
- Lightning Protection2KV
- Dimensions (L*W*H)195 * 130 * 40mm
- Working Temperature-20°C ~ 50°C (-4°F ~ 122°F)
- Working Humidity10% ~ 90%, non-condensing
- Net Weight1.3kg

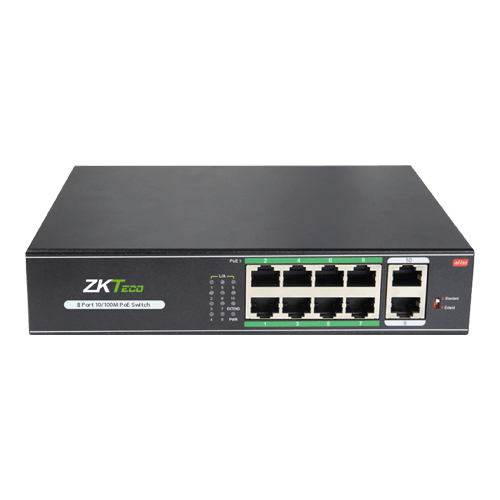

PE08-120 | 8 Port PoE Network Switch
In Stock
Highlights:
Compare
• Commercial standard switch with 2 layers of network artribute
• 250 meters of PoE transmission distance of power and data
• Max. PoE power output 30W for each port
• Conforms to IEEE 802.3i, IEEE 802.3u and IEEE 802.3X
• Conforms to IEEE 802.3af and IEEE 803.3at • MDI/MDIX self-adaptation
• Lightning protection System Overview PE08-120 provides a simple network for IP cameras installation, which could run data and power transmission through CAT 5E / 6 cables at the same time. It also supports long transmission distance of 250 meters to save cost for projects to replace extenders, fibers, and coaxial cables, etc.
