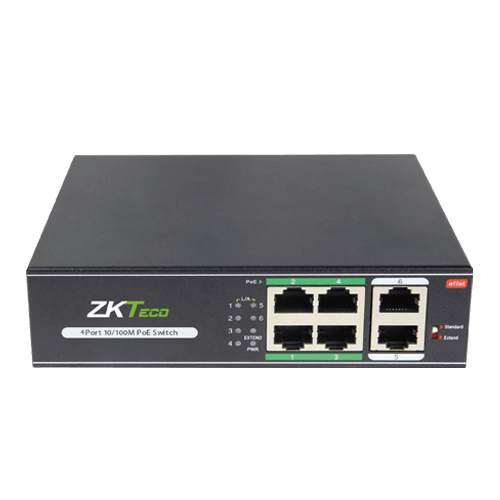

PE04-60 | 4 Ports PoE Network Switch
In Stock
• Commercial standard switch with 2 layers of network artribute
• 250 meters of PoE transmission distance of power and data
• Max. PoE power output 30W for each port
• Conforms to IEEE 802.3i, IEEE 802.3u and IEEE 802.3X
• Conforms to IEEE 802.3af and IEEE 803.3at
• MDI/MDIX self-adaptation
• Lightning protection System Overview PE04-60 provides a simple network for IP cameras installation, which could run data and power transmission through CAT 5E / 6 cables at the same time. It also supports long transmission distance of 250 meters to save cost for projects to replace extenders, fibers, and coaxial cables, etc.
Description
- ModelPE04-60
- Ethernet Port4 PoE Ports (10 / 100 Mbps)
2 Uplink Ports (10 / 100 Mbps)
All ports support MDI / MDIX self-adaptation - POE StandardIEEE 802.3af, IEEE802.3at
- PoE ConsumptionMax 30W per Port, total PoE budget 60W
- Network ProtocolIEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control - Switching Bandwidth1.6Gbps
- Packet Fowarding Rate0.982Mpps
- Buffer Memory768KB
- Mac Table Size1KB
- MTBF100,000 hours
- Power InputAC 220V, 50 / 60Hz
- Lightning Protection2KV
- Working Temperature-20°C ~ 50°C (-4°F ~ 122°F)
- Working Humidity10% ~ 90%, non-condensing
- Dimensions (L*W*H)142 * 113 * 40 (mm)
- Net Weight1kg
