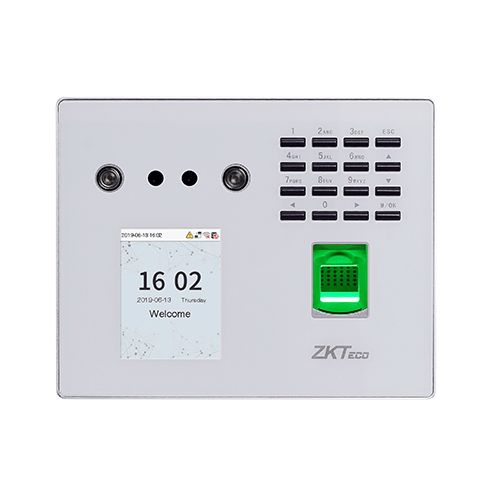

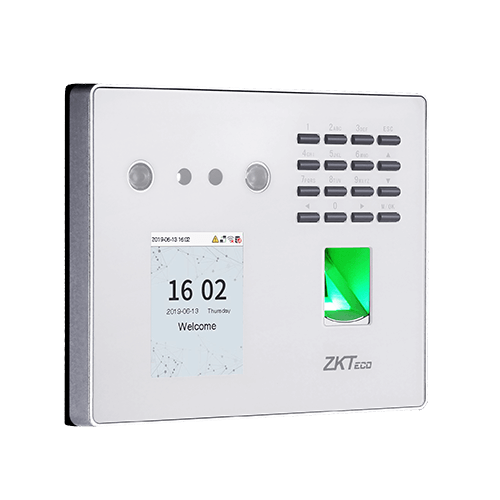

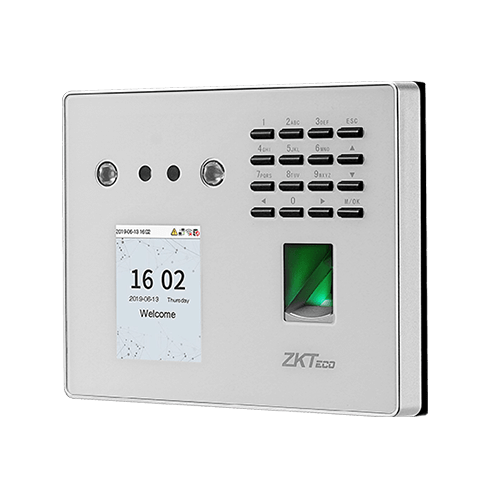

MB560-VL | Time Attendance Device

In Stock

Display: 2.8-inch TFT Screen
Face Capacity: 3,000 (Optional:5,000)
Fingerprint Capacity: 3,000 (Optional:5,000)
Card Capacity: 10,000 (Optional)
Transaction Capacity: 100,000 (Optional:200,000)
Communication: TCP/IP, WiFi (Optional), USB Host
Standard Functions: ADMS, Work Code, DST, Self-service Query, Automatic Status Switch, T9 Input, Photo ID, Masks Detection, Camera, 14-digit User ID, Multiple Verify Modes, Schedule Bell
Hardware: 900MHZ Dual Core CPU;
Memory 512MB RAM / 8G ROM;
2MP WDR Low Light Camera;
Adjustable LED Supplement Lighting;
Operation System: Linux
Interfaces of Access Control: 3rd Party Electric Lock, Door Sensor, Exit Button
Optional Functions: 125KHz ID Card (EM) / 13.56MHz IC Card
Biometrics Algorithms: ZKFace V5.8 & ZKFinger V10.0
Facial Recognition Speed: ≤1s
Facial Recongntion Speed: ≤1s
Power Supply: 12V 1.5A
Operating Humidity: 20% – 80%
Working Humidity: 20% – 80%
Operating Temperature: 0 °C – 45 °C
Working Temperature: 0 °C – 45 °C
Dimension: 170 * 138 * 38.55 (mm)(W*H*D)
Dimensions (W*H*D): 170 * 138 * 38.55 (mm)
Supported Software: ZKBioTime
Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button

Add to wishlist

Category: Time Attendance

Description
Reviews (0)

Description

MB560-VL is a multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology. With the latest algorithm and facial recognition related technologies, the device can perform recognition of a target in a distance from 0.3m to 2m and will function automatically when it detects a face in the detection distance so as to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminal.

With the applied Deep Learning algorithm, pose angle tolerance and anti-spoofing have been greatly enhanced against dynamic environment and various spoofing attacks. Apart from all these, together with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules and additional support in WiFi, MB560-VL must be a best fit in various working environments satisfying different customer’s needs.
